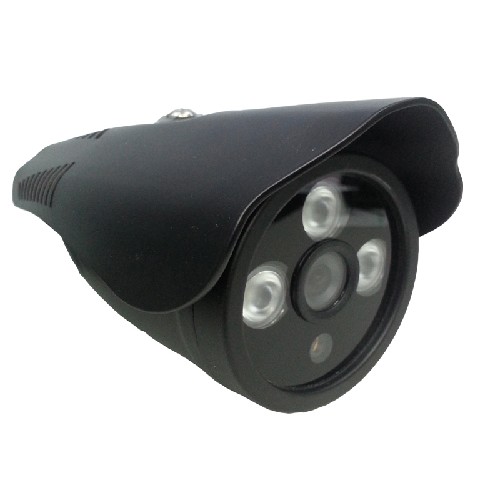

AW638 Array series camera
- 1/3"&1/4" CMOS Sensor,ICR & 1/3-inch color Sony super HADII CCD
- 6mm Fixed Lens (3.6mm,6mm,8mm,12mm optional)
- 3 pieces dot-matrix high-power IR LEDs,132ft (30m)
- 600-1200TVL(optional)
- Signal system: PAL/NTSC
- White balance: auto, manual, lock and auto tracking
- Smart IR
- Built in multi-language OSD(optional)
- Operating temperature: -10 to 50℃, 95% RH (maximum)
- IP66
- indoor & outdoor application
- DC 12V
- Weight:0.5kg
Product Description
Specifications
|
Specifications/model |
AW638C/600 |
AW638C/700 |
AW638C/1200 |
AW638S |
AW638S/600 |
AW638S/700 |
AW638S/800 |
|
Image Sensor model |
Cmos3003A |
Cmos 139 |
Cmos 138 |
sony
3142+633 |
Sony effio
4140+633 |
Sony effio
4140+811 |
Sony effio
4140+353 |
|
Effective Pixels |
NTSC:
510(H) x 492(V)
PAL:
500(H) x 582(V) |
NTSC:
768(H) x494(V)
PAL:
752(H) x582(V) |
NTSC:
1280(H) x960(V)
PAL:
1280(H) x960(V) |
NTSC:
510(H) x492(V)
PAL:
500(H) x582(V) |
NTSC:
768(H)x494(V)
PAL:
752(H) x582(V) |
NTSC:
976(H)x494(V)
PAL:
976(H)x582(V) |
NTSC:
1080(H)x960(V)
PAL:
1080(H) x 960V) |
|
Horizontal Resolution |
600 TVL |
700TVL |
1200TVL |
420TVL |
600TVL |
700TVL |
800TVL |
|
Lens：3.6mm/6mm/8mm/12mm/ (optional) |
|
IR-CUT |
- |
Yes |
Yes |
- |
- |
- |
- |
|
Video System |
NTSC / PAL |
|
Lux |
Color:> 0.3 Lux, B&W:0 Lux (IR On) |
|
Video Output |
1 BNC, 1.0 Vp-p, 75 Ohm Composite |
|
Electronic Shutter |
NTSC: 1/60 ~ 1/100,000, PAL: 1/50 ~ 1/100,000 |
|
White Balance |
ATW |
|
Infrared LED & IR Distance |
|
Infrared Red Lamps |
3 pieces Array IR LED |
|
IR distance |
30m |
|
Power:DC 12V 2A |
|
Weather Protection |
Weather-resistant |
|
Vandal Proof |
Vandal-resistant |
|
Operating Temp. |
-40℃ ~ 50 ℃ |
|
Product Net Weight |
0.8kg |
|
Product Dimension |
13cm x 10cm x 8.5cm | | | | |
| |
|
